Gallery

Non-georeferenced screenshots

Plain screenshots with no metadata, processed at an assumed 0.5 m GSD. The output is an rDSM, and its metric scale is only as good as that assumption.

High-rise district: input, height map, 3D render — High-rise district (v3). Colour scale 0–112.4 m. Each panel shows the input, the predicted height map and a textured 3D render from the viewer.Imagery © Google Earth.

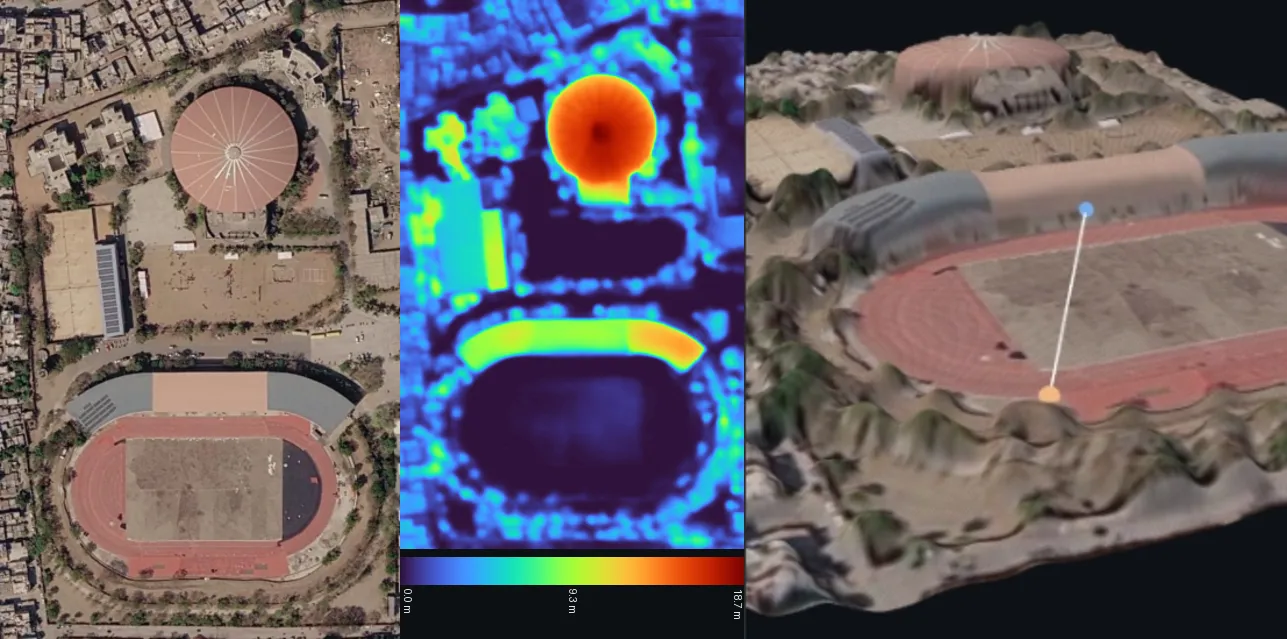

Stadium and domed hall: input, height map, 3D render — Stadium and domed hall (v3). Colour scale 0–18.7 m. The curved roof and the stands are recovered as smooth surfaces.Imagery © Google Earth.

v3 vs v4

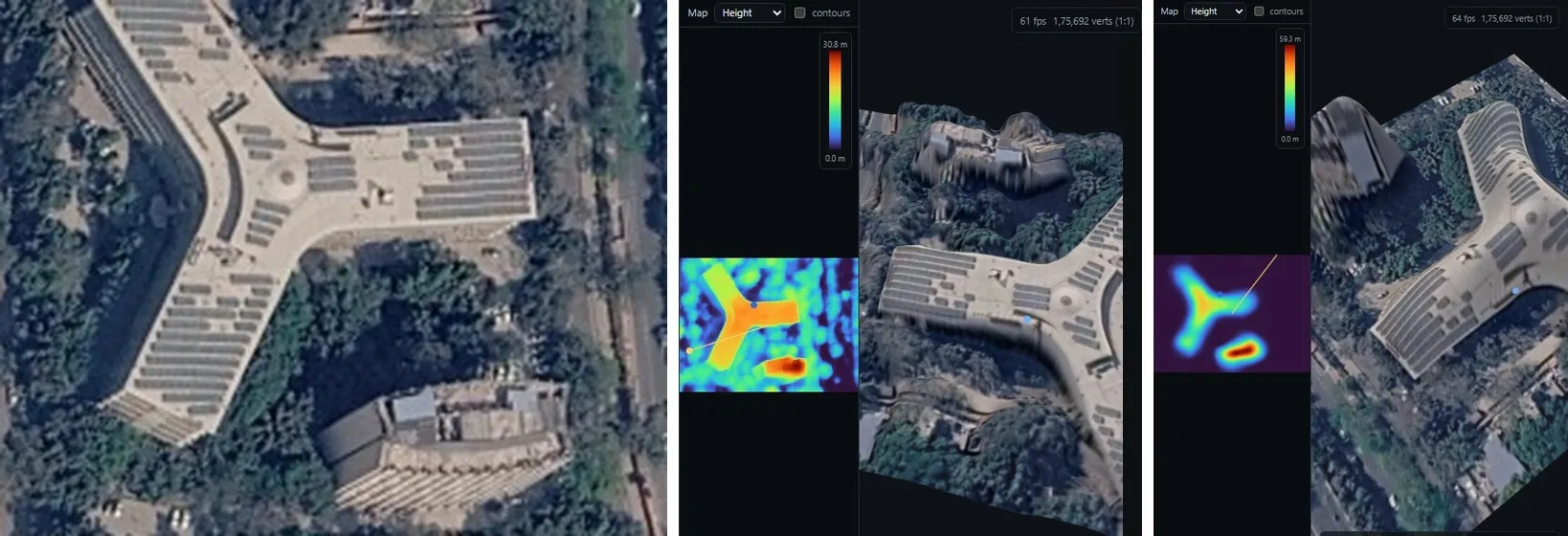

Same scene predicted by v3 and v4-modal — Same scene, same 0.5 m GSD. Left: input. Centre: v3 height map (0–30.8 m) and 3D render. Right: v4-modal (0–59.3 m), which flattens the surrounding tree canopy to zero height. This was the visual symptom of v4's flat-ground trade-off; see Design findings.Imagery © Google Earth.

Cartosat-2E, georeferenced (absolute DSM)

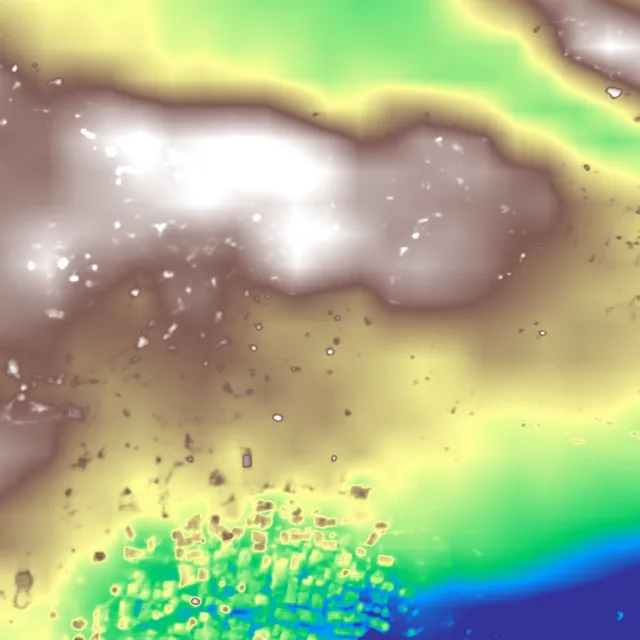

A 1024 × 1024 px Cartosat-2E crop at 0.6 m (EPSG:32644, village and scrubland), processed by v5 with absolute enabled. The nDSM maxes out at 11.8 m and 92.3 % of pixels are below 1 m, as expected for a sparse rural scene. The DSM combines the DEM-anchored terrain with the nDSM, in metres above EGM2008.

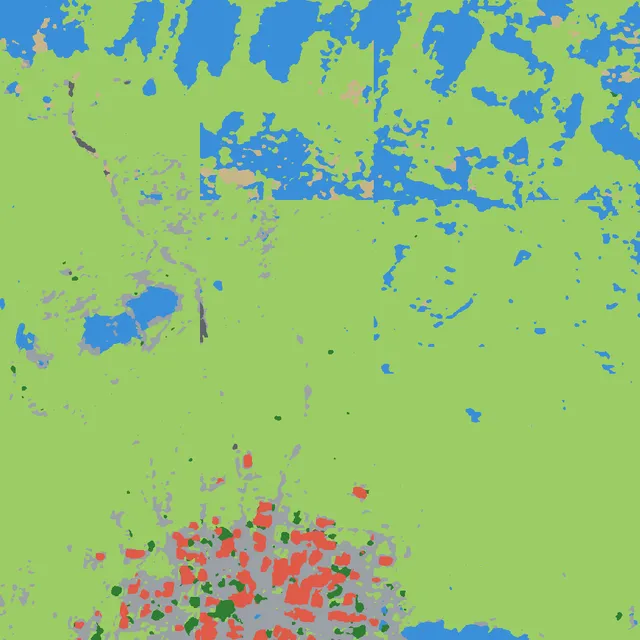

Input (bands 3-2-1) — Classes use the app palette: tan = ground, light green = low vegetation, red = building, blue = water, dark grey = road, light grey = other, dark green = tree. Job 88e63fd3329e.

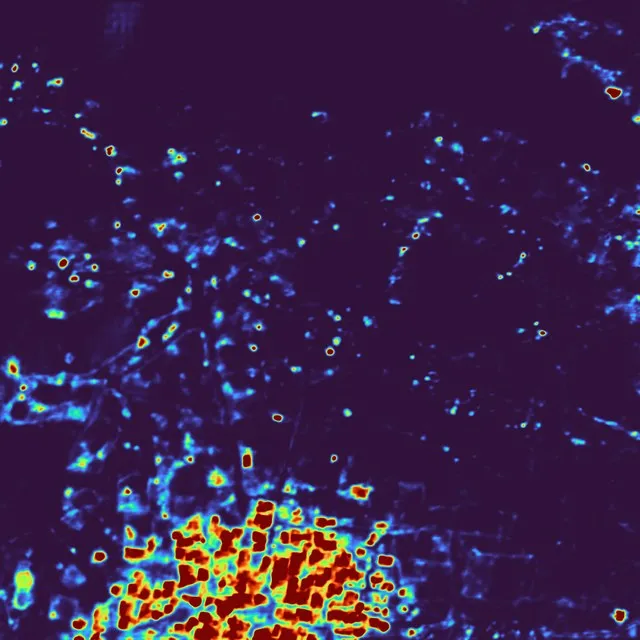

nDSM 0–3.5 m (p98) — Classes use the app palette: tan = ground, light green = low vegetation, red = building, blue = water, dark grey = road, light grey = other, dark green = tree. Job 88e63fd3329e.

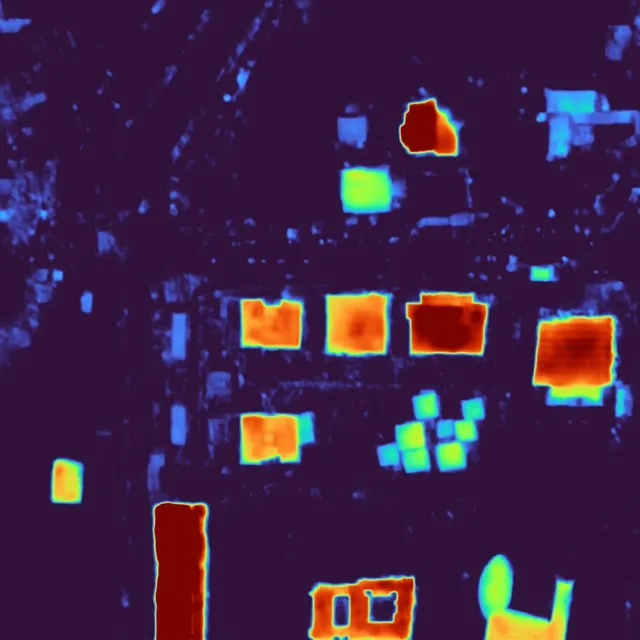

Cartosat-2S campus sample

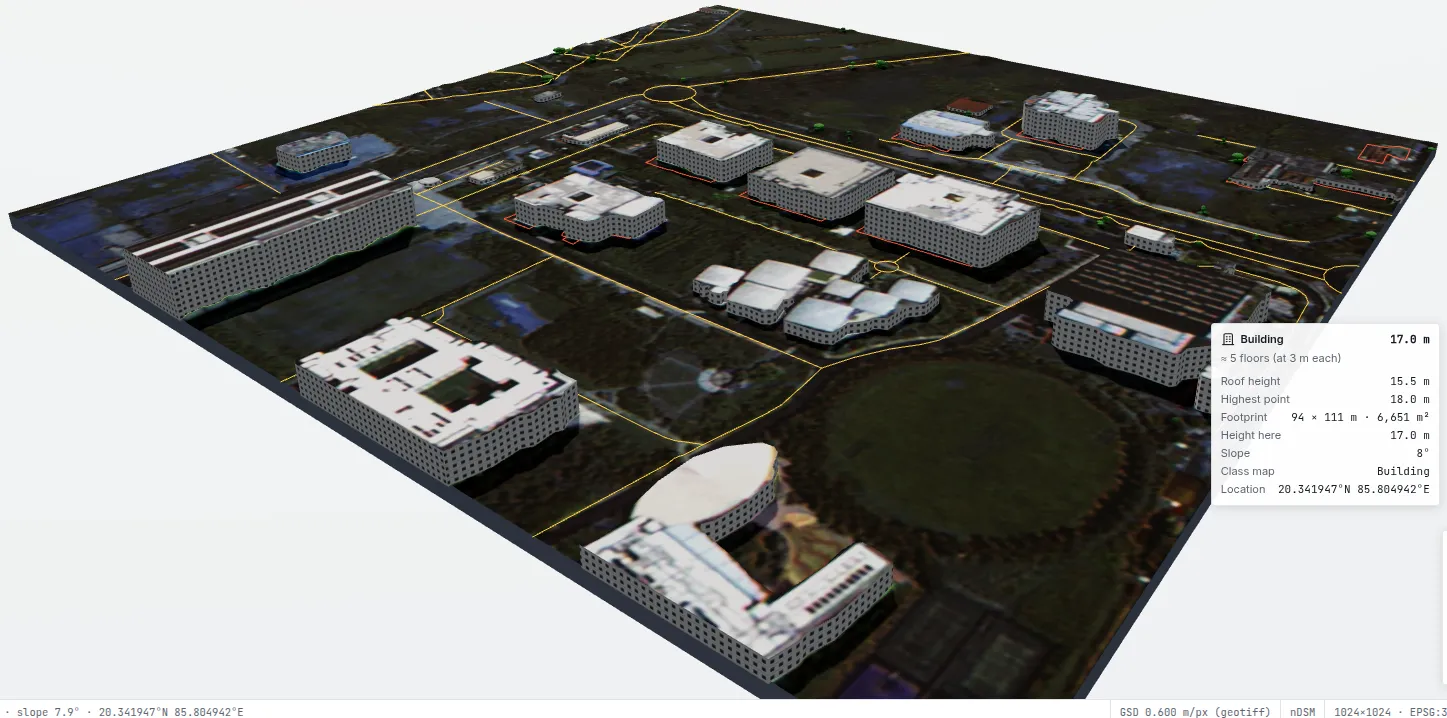

Infosys campus, Bhubaneswar, in the DepthWizard web app with extracted buildings, OSM roads and a hover card — **In the full web app:** Infosys campus, Bhubaneswar (Cartosat-2S, 0.6 m, georeferenced). Buildings are extracted as 3D objects and OpenStreetMap roads are overlaid. The hover card reads a 17.0 m building (about 5 floors, 94 × 111 m footprint). You can explore this scene interactively on the docs home page. Google Maps · Source imagery: Bhoonidhi

The sample scene bundled with the web app (File → Sample scenes): a large campus with detached buildings.

Synthetic test scene

A synthetic city with exact block heights of 24, 11, 38, 8, 17, 6, 30 and 13.5 m, used to test the viewer and the evaluation code end to end.

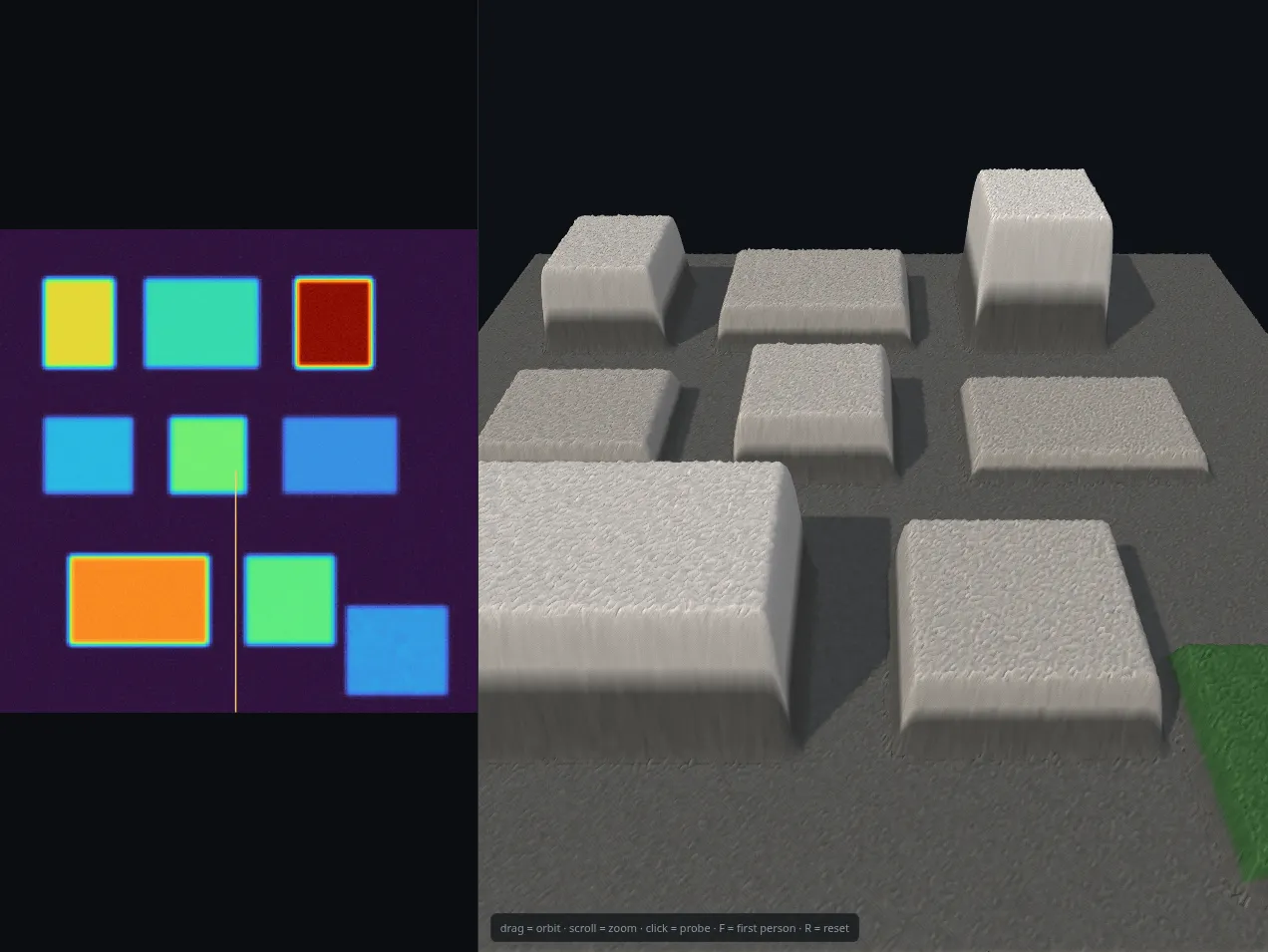

Synthetic scene height map and shaded 3D render — Height map (left) and shaded 3D render (right) in the standalone three.js viewer (Model_Traning/v5/viewer).
